master cylinder protector

Post by jschampkin on Tue 29 Sep 2015, 7:57 pm

I've just changed the brake oil on the front brake but when topping up I dislodged the protector. Do you know which way up it goes . Thanks
avatar
jchesshyre
the 900
the 900

Posts : 636
Location : Chester

Re: master cylinder protector

Post by jchesshyre on Tue 29 Sep 2015, 8:04 pm

Do you mean the rubber diaphragm (oo er) that sits under the lid and the plastic piece in the reservoir?
avatar
jschampkin
Newbie
Newbie

Posts : 7
Location : Whitstable

Re: master cylinder protector

Post by jschampkin on Tue 29 Sep 2015, 8:33 pm

Hi  , no ,  on the bottom of the master cylinder next to the brake line hole is a raised recess where this little metal chappy fits. I've googled the master cylinder exploded views and it calls it a protector . It's circular both ends but one end has a small hole in it and tabs around the edge.  It's number 6 on the brake cylinder view

http://www.micksgarage.com/images/honda/bikes/CB500T_1996_F-4%20FR.%20BRAKE%20MASTER%20CYLINDER%20(1).png
avatar
jerryfudd
Moderator
Moderator

Awesome!
Posts : 1744
Location : Surrey

Re: master cylinder protector

Post by jerryfudd on Tue 29 Sep 2015, 9:28 pm

thats new to me, don't get that on the later model.

I took a look at the Lings diagram and it appears to have prongs protruding upwards..... that make any sense?

avatar
jschampkin
Newbie
Newbie

Posts : 7
Location : Whitstable

Re: master cylinder protector

Post by jschampkin on Tue 29 Sep 2015, 9:40 pm

I'll have a look to see how I left it. Thanks for your help
avatar
jschampkin
Newbie
Newbie

Posts : 7
Location : Whitstable

Re: master cylinder protector

Post by jschampkin on Tue 29 Sep 2015, 9:43 pm

Anybody got a 1996 to see how the thing sits on their bike  Very Happy Very Happy
avatar
jchesshyre
the 900
the 900

Posts : 636
Location : Chester

Re: master cylinder protector

Post by jchesshyre on Tue 29 Sep 2015, 9:44 pm

I've got a derelict one in my back garden...I'll have a peek in a bit...
avatar
jchesshyre
the 900
the 900

Posts : 636
Location : Chester

Re: master cylinder protector

Post by jchesshyre on Tue 29 Sep 2015, 10:23 pm

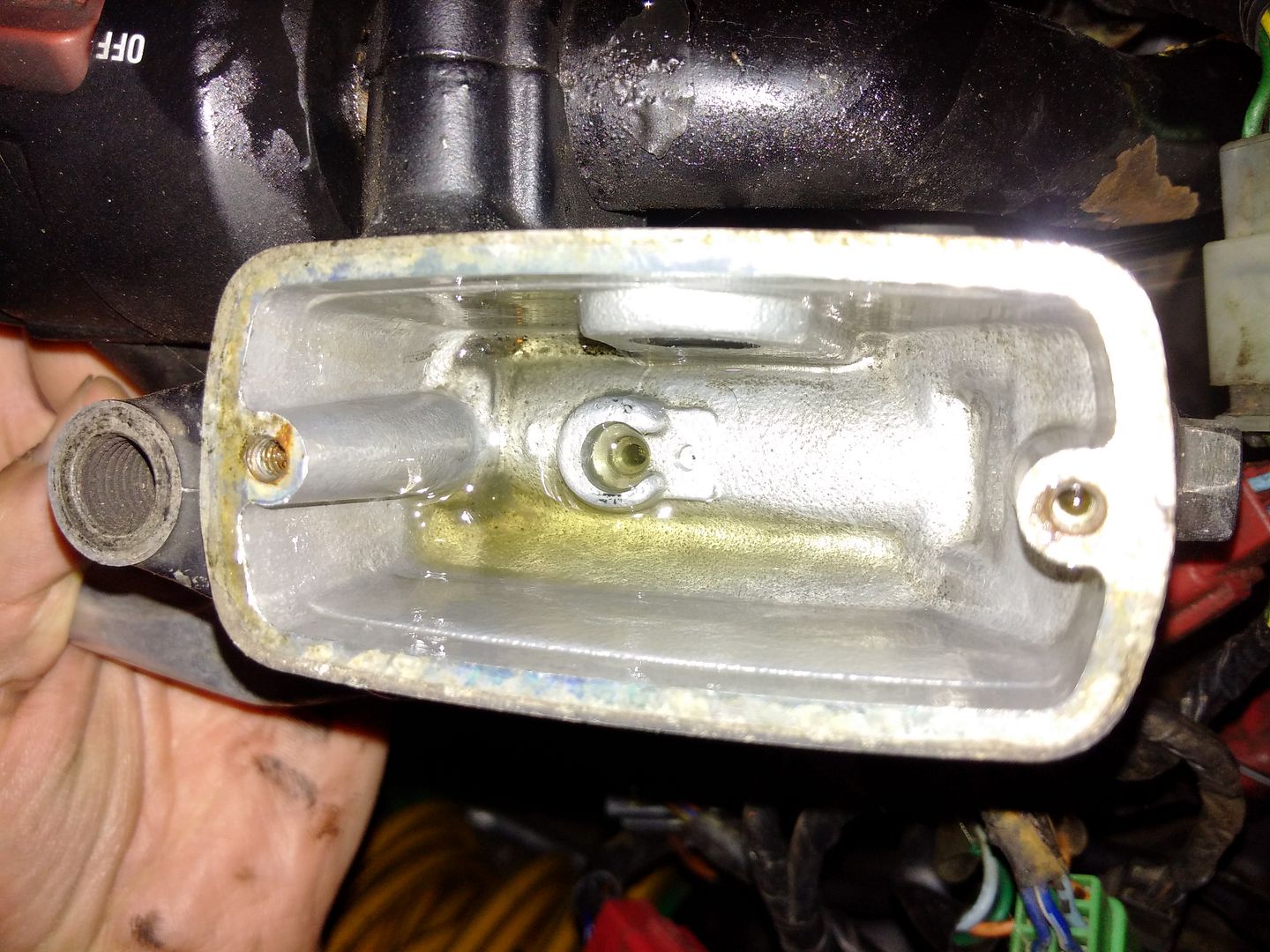

Well, here's a picture of the interior of mine. Does this help at all? I've got a feeling that the 'protector' is missing, and was missing for the entire 125,000 miles I rode on it, as I tried to move that bit at the bottom and it seemed to be part of the reservoir.


What's it supposed to 'protect' the master cylinder from anyway?
avatar
jschampkin
Newbie
Newbie

Posts : 7
Location : Whitstable

Re: master cylinder protector

Post by jschampkin on Tue 29 Sep 2015, 10:40 pm

Thanks for looking, can't do too much then if yours worked fine without it all that time !
avatar
eternally_troubled
Admin
Admin

Awesome!
Posts : 3674
Location : 'ere be fens. (near Cambridge)

Re: master cylinder protector

Post by eternally_troubled on Wed 30 Sep 2015, 12:31 pm

Ah!  Is that the bit that goes over the hole at the bottom of the master cylinder?  A bit like a filter...

I seem to recall that my '97 there is a plastic thing at the bottom of the reservoir covering the hole... (admittedly it is the brembo version, but...)

Guest
Guest

Re: master cylinder protector

Post by Guest on Wed 30 Sep 2015, 3:48 pm

Tabs go up so that it sits as deep as possible if I remember well when last it was open...
avatar
jschampkin
Newbie
Newbie

Posts : 7
Location : Whitstable

Re: master cylinder protector

Post by jschampkin on Wed 30 Sep 2015, 7:31 pm

Thanks everyone , I think that's how I left it
